Concentric Reducing rubber expansion joint
Concentric Reducing rubber expansion joint is widely used in the field of chemical industry, construction, supply water, sewage drainage, petroleum, light and heavy industry, sanitation, plumbing, electricity and other fundamental engineering.
The inner seamless high-pressure rubber joint is developed by us which prevents corrosive medium from etching the inner wall of the rubber joint in high temperature, acid, alkali and oil resistance pipeline, thereby it also can extend its service life span.Structural noise transmission can be reduced with the restrict and flange non-parallelism.
Reducing flexible rubber joint is consist of fabric reinforced and metal flange loose joint.
It has the characteristics of compact structure,light weight,high flexibility,easy installation,long service life.
l More compensation capability
l An economic and space saving way to combine a reducing pipe fitting with an expansion joint
l Integral flange design, no gaskets required
l Filled arch design available
l High strength and simple to install
MATERIALS
Rubber Joint is manufactured from independent rubber layers and reinforcements that are vulcanized together after being molded or formed.
With over 10 rubber elastomers available and our experts may assist customers select the most appropriate rubber polymer for your requirements. Including NR, NBR, EPDM, PTFE, FKM, Neoprene, butyl rubber , etc
FLANGES
Carbon steel as standard. Also available in zinc plated or hot dip galvanized carbon steel, Stainless steel 304,316, QT450,Q235
Flanges drilled to EN, BS,DIN, ANSI, JIS, standards or any specific dimension.
PRODUCT

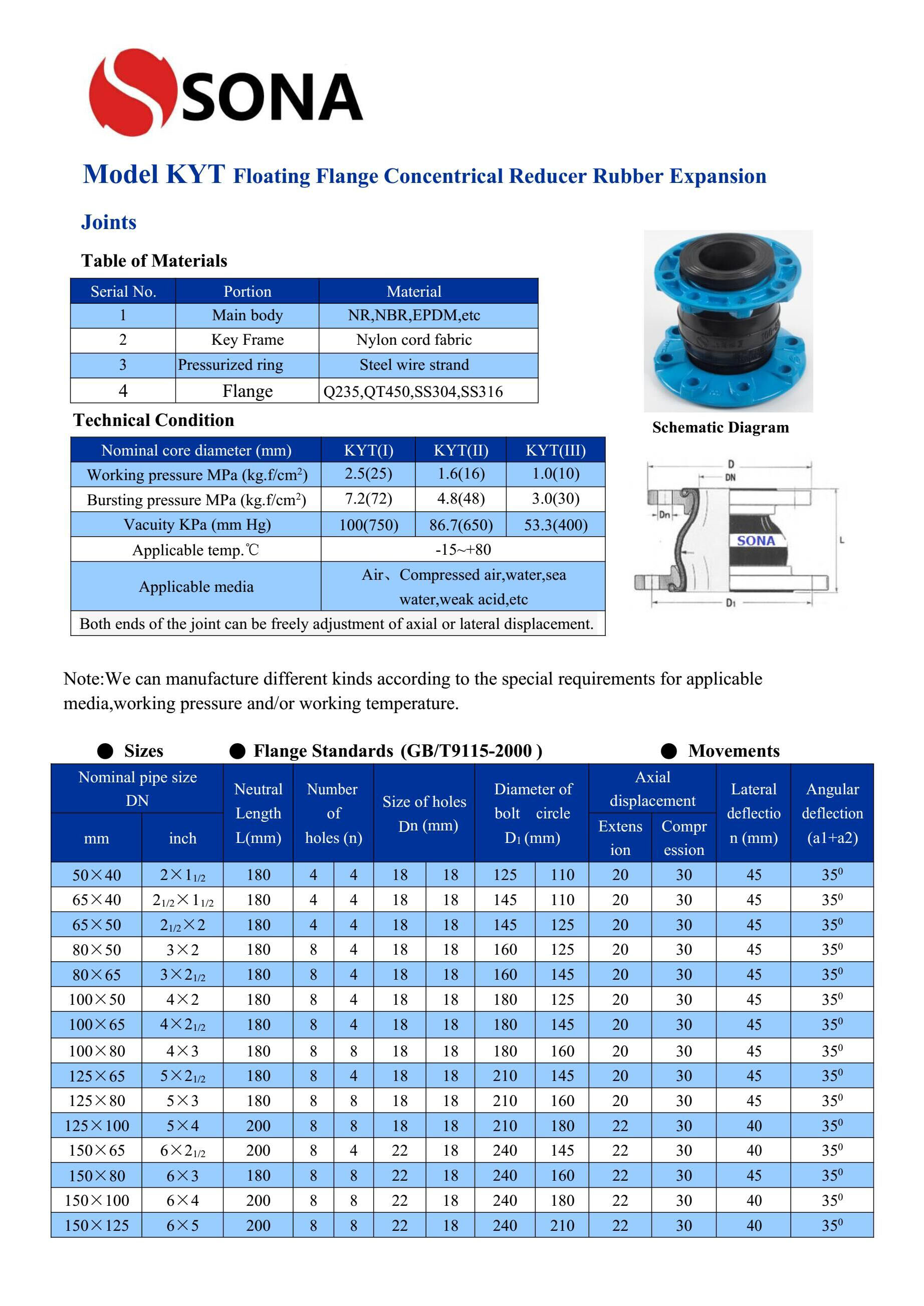

PARAMETRS TABLE
The inner seamless high-pressure rubber joint is developed by us which prevents corrosive medium from etching the inner wall of the rubber joint in high temperature, acid, alkali and oil resistance pipeline, thereby it also can extend its service life span.Structural noise transmission can be reduced with the restrict and flange non-parallelism.
Reducing flexible rubber joint is consist of fabric reinforced and metal flange loose joint.
It has the characteristics of compact structure,light weight,high flexibility,easy installation,long service life.
FEATURES
l Versatile hand-built constructionl More compensation capability
l An economic and space saving way to combine a reducing pipe fitting with an expansion joint
l Integral flange design, no gaskets required
l Filled arch design available
l High strength and simple to install
MATERIALS
Rubber Joint is manufactured from independent rubber layers and reinforcements that are vulcanized together after being molded or formed.
With over 10 rubber elastomers available and our experts may assist customers select the most appropriate rubber polymer for your requirements. Including NR, NBR, EPDM, PTFE, FKM, Neoprene, butyl rubber , etc
FLANGES
Carbon steel as standard. Also available in zinc plated or hot dip galvanized carbon steel, Stainless steel 304,316, QT450,Q235
Flanges drilled to EN, BS,DIN, ANSI, JIS, standards or any specific dimension.
PRODUCT
PARAMETRS TABLE
