PVC/Single sphere rubber expansion joints

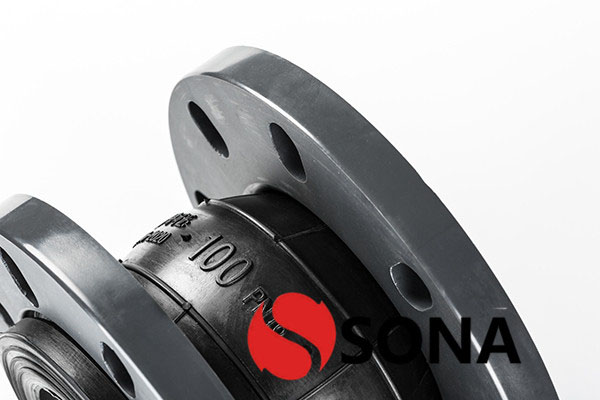

Single sphere rubber expansion joints -DN100

It’s most versatile rubber expansion joints available.It has the characteristics of high pressure resistance, good flexibility, big displacement, balance pipeline deviation, absorbing vibration, good effect to reduce noise, easy installation.

Product Function: unique design, simple structure and good sealing performance, flexible rubber expansion joint completely solve the pipeline displacement problems caused by thermal expansion and contraction, as well as mechanical and pipe vibration.

FEATURES

· Absorption of directional movement
· Provides noise and vibration isolation.
· Gaskets and packing are not required.
· Floating flanges allow for easy installation.
· Prevents piping system and equipment breakdown by absorbing elongation and contraction caused by temperature variances.
· Absorbs water pulsation and minimizes water hammering.

MATERIALS
Rubber Joint is manufactured from independent rubber layers and reinforcements that are vulcanized together after being molded or formed.
With over 10 rubber elastomers available and our experts may assist customers  select the most appropriate rubber polymer for your requirements. Including NR, NBR, EPDM, PTFE, FKM, Neoprene, butyl rubber , etc

FLANGES MATERIALS PVC
